Superfold Pile Feeder 53
Compact High‑Speed Outsert Folding System with Integrated Inspection
Product Overview

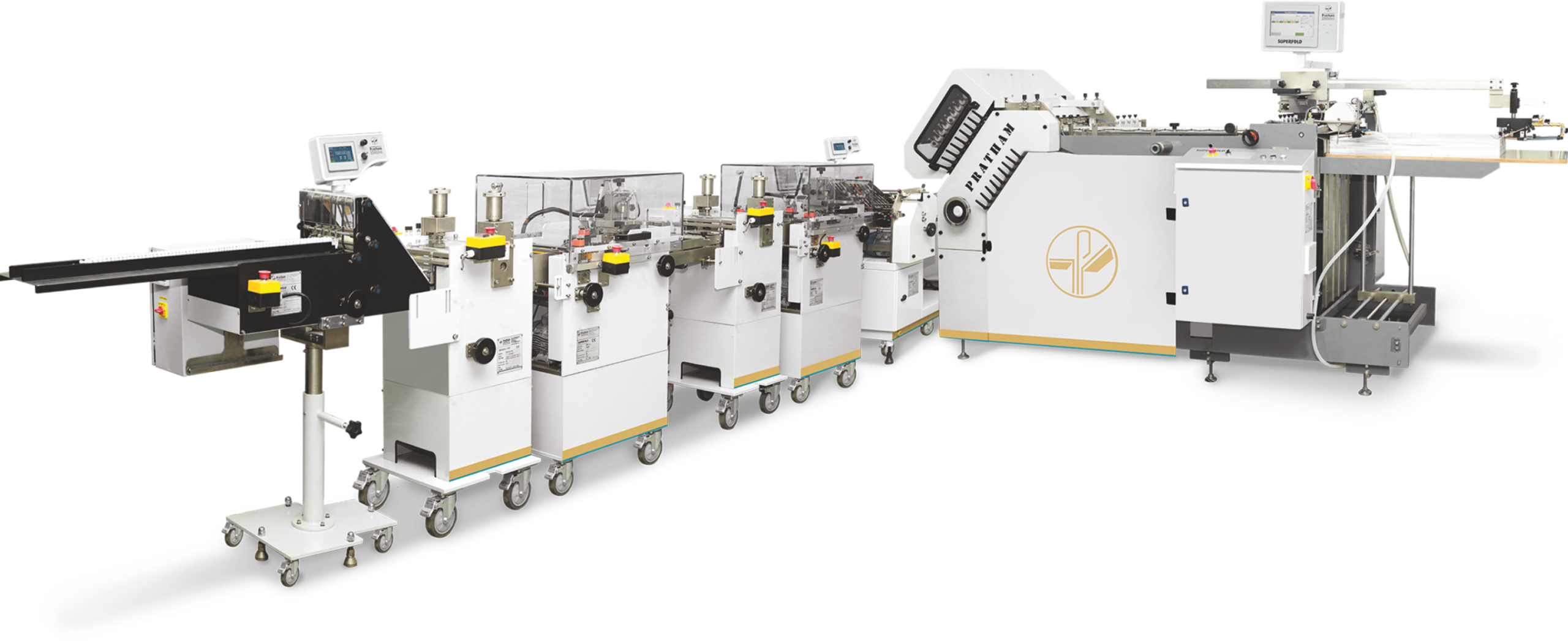

The Superfold PF 53 is a compact, high‑performance outsert folding system engineered by Pratham Technologies to meet the stringent demands of pharmaceutical and healthcare packaging environments where precision, space efficiency, and quality compliance are critical.
Designed for accuracy, consistency, and regulatory confidence, the PF 53 combines flexible folding configurations with an integrated vision‑based inspection system to ensure precise folding, while automatically detecting and rejecting double sheets or faulty inserts—reducing rejects, rework, and operator intervention. Its narrow 21-inch footprint makes it ideal for production floors with space constraints, while its modular design allows manufacturers to adapt the machine to evolving product requirements.
Built for continuous operation and long‑term reliability, the Superfold PF 53 is a proven solution for manufacturers seeking high throughput, minimal downtime, and uncompromised quality control.
Key Benefits
Built‑in Quality Assurance
Vision inspection with in‑feed diverter ensures detection and automatic rejection of double sheets or defective inserts, supporting compliance and reducing rejects.
Compact Footprint
At just 21 inches wide, the machine fits seamlessly into existing lines and retrofit installations.
Built‑in Quality Assurance
Capable of speeds up to 150 m/min, enabling efficient, continuous production.
Flexible Folding Capability
Multiple plate configurations accommodate a wide range of complex folding patterns and insert sizes.
Operator‑Friendly Design
Noise separation hood and quick‑change components improve operator comfort and reduce setup time.
Future‑Ready Modularity
Optional accessories and configurations allow the system to evolve with changing production requirements.
Folding Configurations
First Fold Station
Available with 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 plates
Right‑Angle Folding Section
This flexibility allows precise control over fold complexity and finished insert dimensions
Typical Applications
- Pharmaceutical package inserts
- Outserts and leaflets
- Multi-fold instruction manuals
- Regulatory and compliance documentation
Industries Served
- Pharmaceutical manufacturing
- Contract packaging organizations (CPOs)
- Healthcare and medical device companies
- Export-oriented packaging lines & operations
Why Choose Superfold PF 53?
- Engineered specifically & proven performance in pharmaceutical packaging environments
- Integrated inspection for enhanced process reliability & regulatory compliance
- Compact design ideal for modern, space‑optimized facilities
- Proven performance with demanding paper grades and thin substrates
- Backed by Pratham Technologies’ expertise in folding and automation solutions
- Engineered for high-speed, continuous operation
Technical Specifications
PF 53
| Maximum Paper Size | 530 × 1000 mm |
| Minimum Paper Size | 160 × 210 mm |
| Paper Weight Range | 40 – 90 gsm |
| Paper Type | Bible Paper, Maplitho |
| Roller Speed | 150 m/min |
| Minimum Folding Size | 32 × 32 mm |
| Maximum Fold Thickness | 16 mm |
| Power Consumption | 6 KW |
Key Features & Benefits
To avoid wear and tear of parts
*Note: Manual folding trays are included by default. Automatic folding trays can also be provided, as per the requirements.
Need an efficient outsert folding system for complex pharmaceutical leaflets?
Talk to our experts to discover the right outsert folding solution for your packaging line.
Options & Customisation
| Optional 1000 mm extended model |
| Slitting and creasing accessories for increased productivity |
| Removable creasing shaft for enhanced format flexibility |
| Integration with downstream packaging equipment |
| Custom plate configurations to suit specific production needs |
Specifications and configurations can be customized based on application requirements.
Talk to Our Folding Experts
Looking for a compact, high‑speed outsert folding solution with built‑in quality assurance?
- Request detailed technical consultation
- Discuss your application requirements
- Schedule a consultation or demo walkthrough
