Intigrated Feeders
Featuring Supertwin Twinsert 100 and Supertwin 3Sert, the Integrated Feeders range ensures accurate glued set production and dependable performance.
Super 3sert
Specially Designed for
Specially Designed for
Stick Three Folded Outsert Samples
Stick Three Folded Outsert Samples
Product Overview

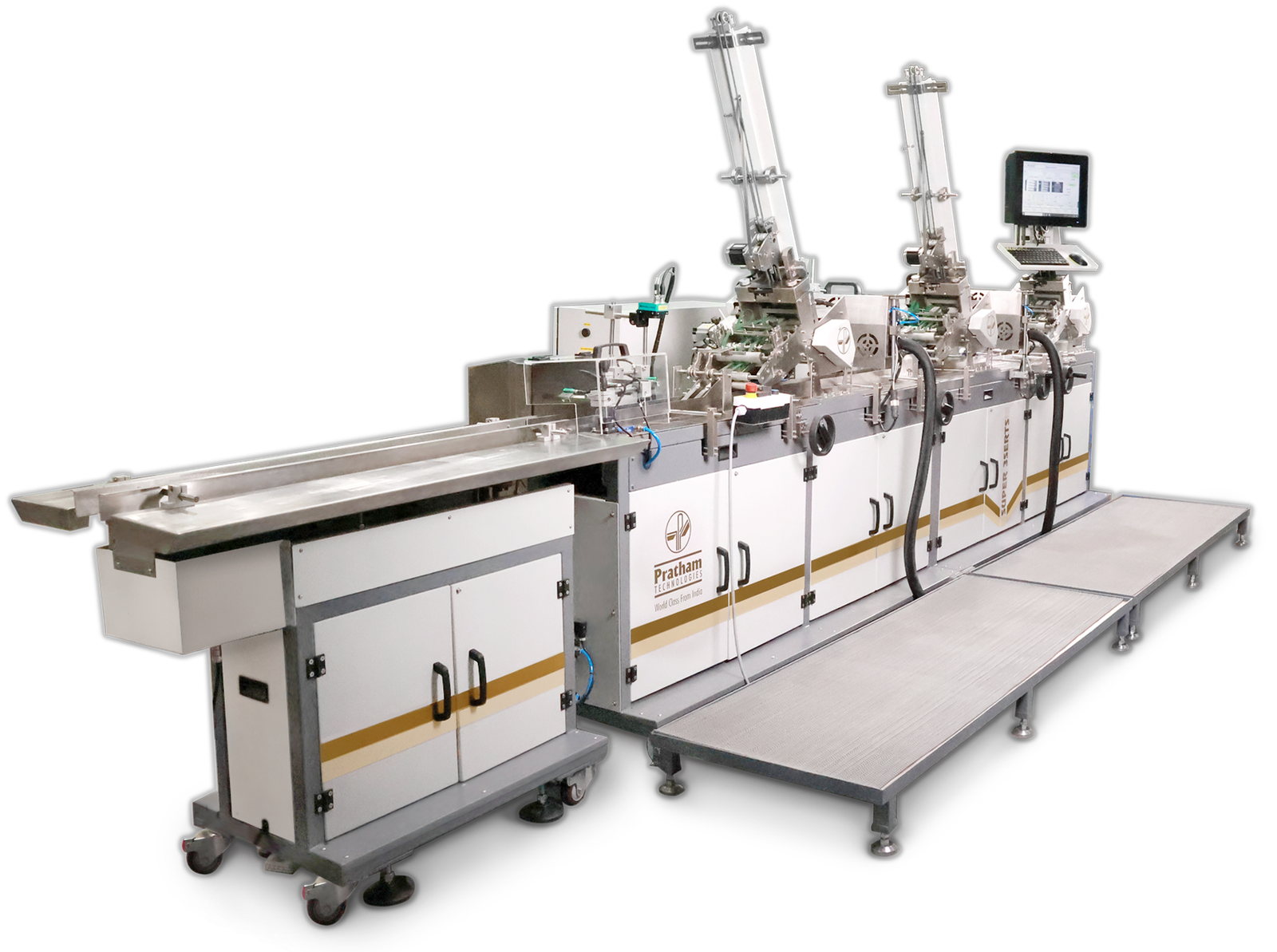

Super 3sert is an advanced outsert packing system engineered to automate the precise gluing and stacking of folded outserts in high-speed pharmaceutical packaging lines.
Designed for seamless inline operation, the system performs accurate sample alignment, gluing, inspection, and stacking without interrupting production flow.
Equipped with multiple infeed and gluing stations, Super 3sert ensures consistent performance across a wide range of outsert sizes and thicknesses. Its integrated inspection and rejection mechanisms help maintain quality standards while reducing manual intervention and handling errors.
By combining speed, accuracy, and reliability, Super 3sert delivers efficient end-of-line outsert packing for modern pharmaceutical packaging operations.
Key Features
- Productive and efficient accuracy in glued sets
- 15 mm thicker pharmaceutical folded samples are feasible
- The feeding tray height is 937 mm long to hold the maximum number of samples
- Smoothens process flow. If first samples are found incorrect then it will not apply glue to the next feeder sample. It minimizes wastage.
- A camera-based inspection checks the codes and alphabets
- Ejection confirmation facility to ensure that incorrect samples never enter into finished sets
- 21 CFR compliance of inspection software
- Excellent reconciliation of Outsert samples from first feeder to collection unit
Possible Sticks
Technical Specifications
3sert
Automated gluing & stacking of folded outserts
| Minimum paper size | 40 x 40 mm |
| Maximum paper size | 100 x 100mm |
| Minimum paper thickness | 3 mm |
| Maximum Paper thickness | 10 mm |
Need accurate and reliable outsert gluing and stacking at high speeds?
Contact Pratham Technologies to find the ideal Super 3sert solution for your operations.
