Product Overview
The Super Fold Pile Feeder PF-35 is purpose-built for high-throughput, precision folding tasks in pharmaceutical insert and commercial print environments. Offered in a 750 mm variant supporting 6, 8, and 12 plate configurations, this powerhouse combines performance with versatility for demanding productions.
Discover the advanced Pile Feeder PF-35: a robust folding solution offering broad paper range flexibility (28–130 GSM), smooth handling of Bible, Maplitho, and Art papers, and a substantial 500 mm loading capacity. Precision is key with Side Lay registration and double-sheet detection, while mechanical ejection keeps operations flowing. Inspect both sides for quality, rely on combination rollers for flawless movement, and enjoy intuitive setup with the position indicator tray.
For thicker or more complex fold jobs, the built-in cross-folding attachment offers unmatched adaptability.”Pratham Technologies“ Pile Feeder – 35 delivers Precision and Speed for A4/A3 Paper Folding Machine. Ideal for pharmaceutical & commercial printing.contact us now!
Key Features
- Wide GSM Range: Handles paper weights from 40 to 130 GSM.
- Specialty Paper Ready: Easily folds Bible, Maplitho, and Art paper types.
- Bulk Loading Capacity: Large 500 mm pile height lets you load more, less frequently.
- Accurate Folding: Utilizes Side Lay registration for consistent alignment.

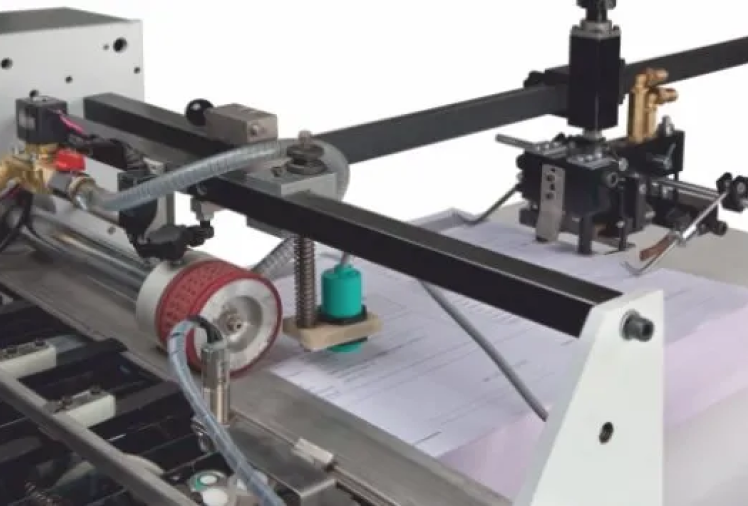

- Error Detection: Double-sheet detector avoids misfeeds and jams.
- Continuous Operation: Mechanical ejection enables non-stop productivity.
- Quality Assurance: Dual-sided vision inspection checks both sides during operation.

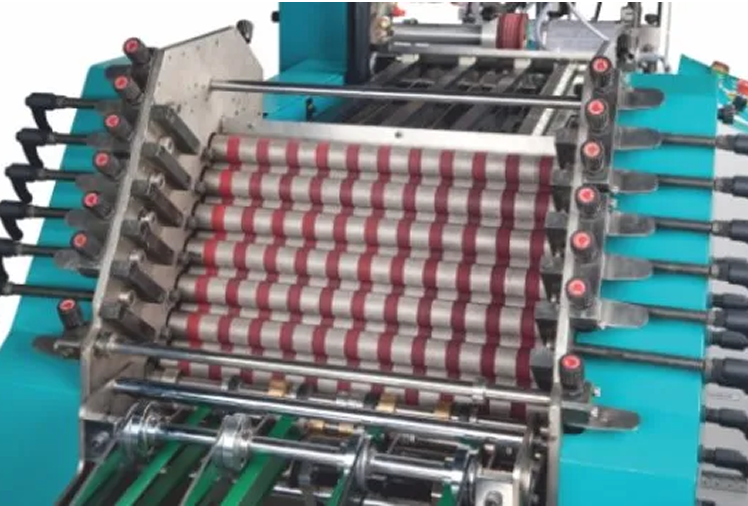

- Smooth, Reliable Folding: Combination Rollers deliver seamless paper movement.
- User-Friendly Setup: Position Indicator Tray eases accurate paper placement.
Possible Folding Patterns
Technical Specifications
PF 35/6
High-speed pile-fed folding solution for insert applications
| Folding configuration | 6 folding plates + 5 deflectors |
| Maximum paper size | 350 × 750 mm (13.78″ x 29.53″) |
|
Minimum paper size* (can be customized) |
125 mm x 150 mm (4.92″ × 5.91″) |
| Minimum paper fold | 18 mm (0.71″) |
| Roller speed | Up to 135 m/min |
| Paper weight range | 40–130 gsm (Indian combination rollers) |
| Paper type | Bible paper, coated, and non‑coated |
| Power supply | 3‑phase, 230/415 VAC, 50/60 Hz |
BFC 29/6S
Compact buckle folding machine for short-format and precision folds
| Folding configuration | 6 folding plates + 5 deflectors |
| Maximum paper size | 290 × 350 mm (11.42″ × 13.78″) |
| Minimum paper size | 30 × 90 mm (1.18″ × 3.54″) |
Features
Looking for a high-speed pharmaceutical insert folding solution?
Contact Pratham Technologies to find the right insert folding solution for your production needs.
