Insert Folding Machines
SuperFold Insert Folding Systems combine precision, reliability, and efficiency – delivering consistent fold quality and dependable performance in high-volume pharmaceutical leaflet and insert production operations.

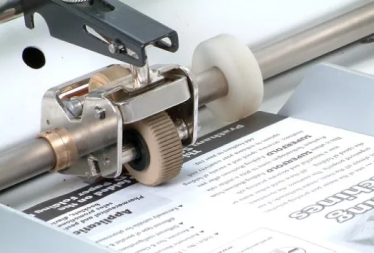

Superfold Friction Feeder 35
Cross Folding
Parallel Folding
Cross Folding
Parallel Folding
Specially Designed for
Specially Designed for
Small Pharma Leaflet Application
Small Pharma Leaflet Application
Product Overview
The Super Fold Friction Feeder FF-35 is a high-speed, efficient, and cost-effective A3/A4 paper folding machine designed for pharmaceutical insert folding. Built for precision and ease of use, it supports 2, 4, and 6 fold configurations with a working width of 350 mm, making it ideal for Maplitho paper and similar substrates.
Key Features
- User-friendly job setting and operation

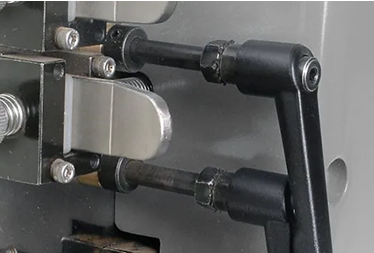

- Precise roller gap adjustment using a calliper for optimal folding accuracy

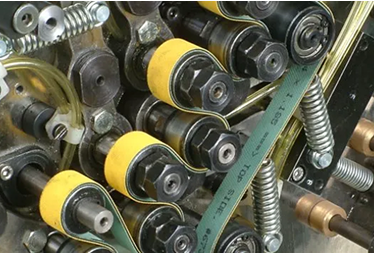

- Silent belt drive system ensures smooth and noise-free operation
- Noise suppression hoods for enhanced sound control

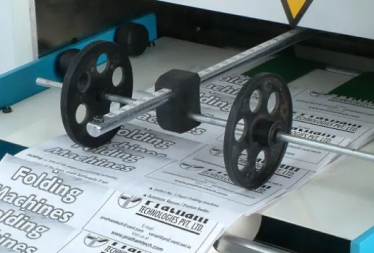

- Creasing or perforation on folded leaflets possible during operation
- Minimum folding size of 18 mm
- Dual-side vision inspection to avoid mix-ups and blank sheets
- Mechanical ejection with non-stop operation for continuous productivity
- Easy maintenance with simplified access and minimal downtime
Possible Folding Patterns
Technical Specifications
FF 35/6
High-speed friction-fed folding solution for insert applications
| Folding configuration | 6 folding plates + 5 deflectors |
| Maximum paper size | 350 x 650 mm (13.78″ × 25.59″) |
| Minimum paper size | 70 x 110 mm (2.75″ x 4.33″) |
| Minimum paper fold | 18 mm (0.71″) |
| Max output speed | Up to 19000 sheets/hr. (A4, Single Fold, 60 gsm) |
| Roller speed | Up to 135 m/min |
| Paper weight range | 47-130 gsm |
| Power supply | 230 VAC, 50/60Hz |
BFC 29/6S
Compact buckle folding machine for short-format and precision folds
| Folding configuration | 6 folding plates + 5 deflectors |
| Maximum paper size | 290 x 350 mm (11.417″ x 13.77″) |
| Minimum paper size | 30 x 90 mm (1.18″ x 3.54″) |
Features
Looking for a high-speed pharmaceutical insert folding solution?
Contact Pratham Technologies to find the right insert folding solution for your production needs.
