Product Overview

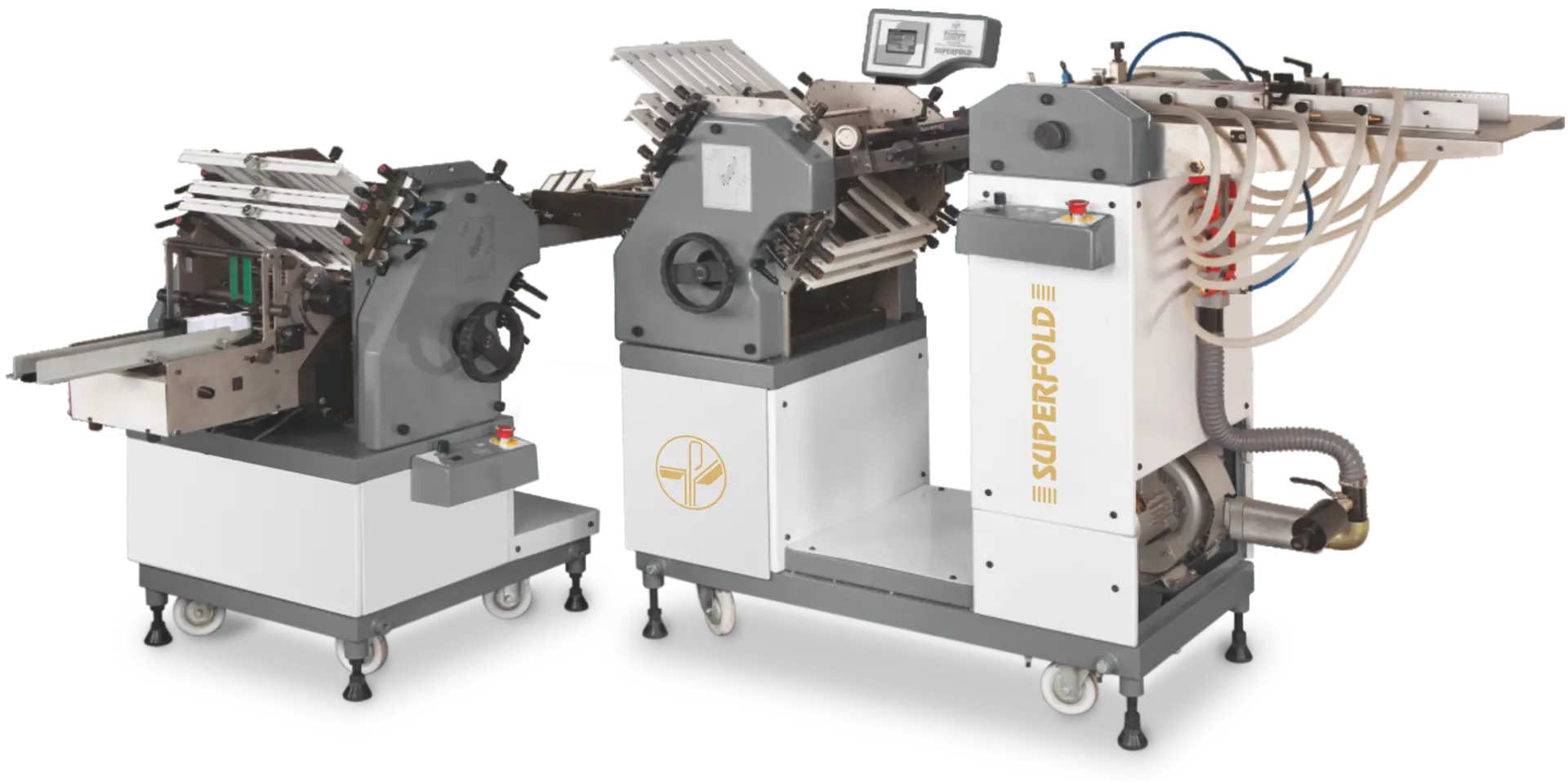

The Super Fold Vacuum Feeder VF-35 is a high-speed, precision-engineered folding solution, available in 2, 4, 6, and 8 fold configurations. Designed for demanding pharmaceutical and commercial printing needs, it offers consistent performance and flexibility—especially for small paper handling.
This automatic vacuum feeder leaflet folding machine is widely used in high-volume production environments such as brochure, catalogue, and pharmaceutical insert manufacturing, where quick and accurate folding is essential.
Pratham Technologies Pvt. Ltd. is a Privately Held machinery manufacturing company headquartered in Pune, Maharashtra, India which manufacturer of An Automatic Folding Machine streamlines paper folding with precision and speed. It enhances productivity, reduces manual effort, and ensures consistent results.
Key Features
- Vacuum feeding for smooth, reliable operation
- Side lay registration ensures precise alignment

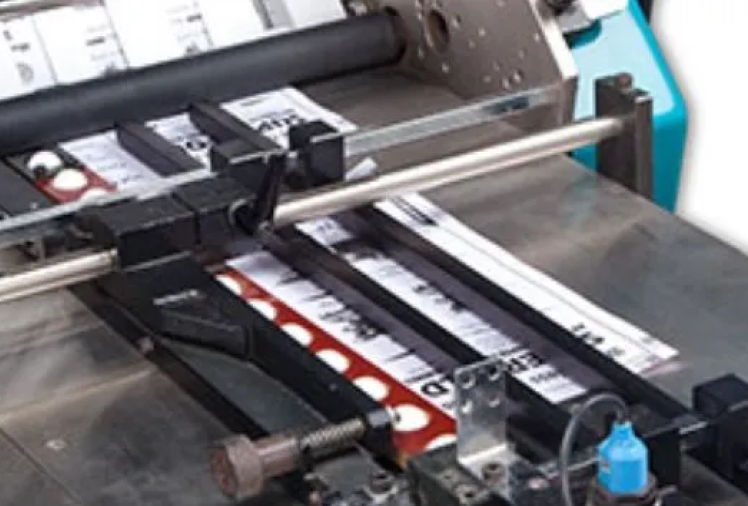

- Stream and individual feeding technology for various production needs
- Ideal for small paper formats, with adjustable settings
- User-friendly job setting and operation

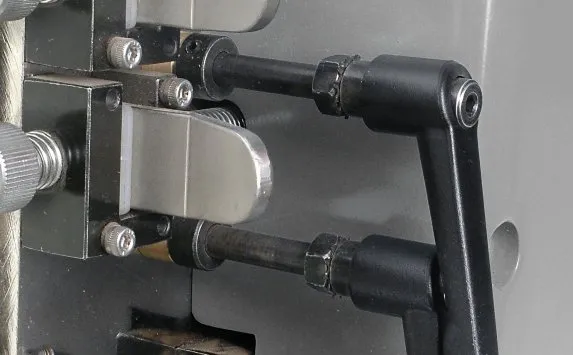

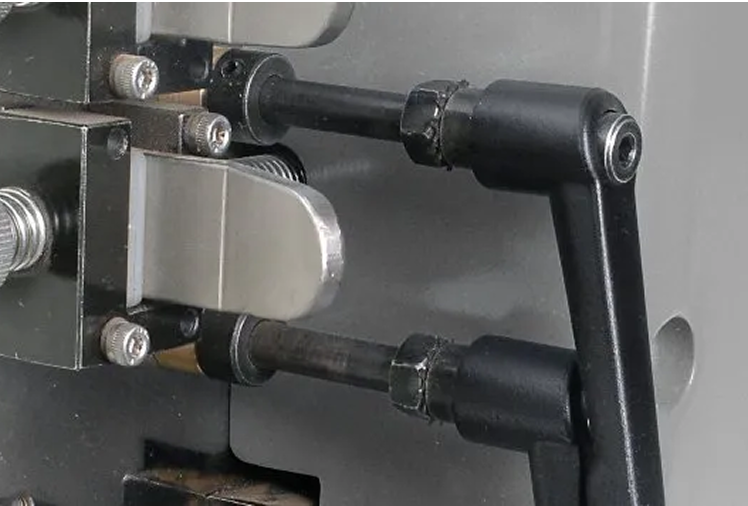

- Roller gap adjustment via calliper for folding precision

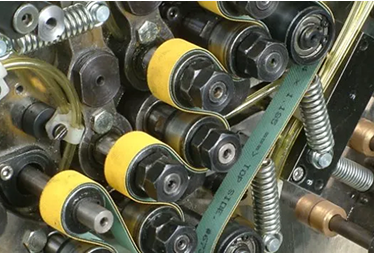

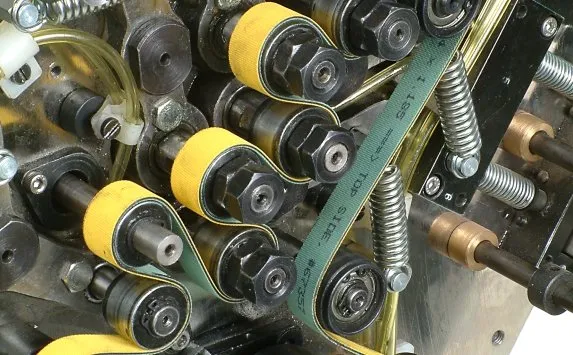

- Silent belt drive system for noise-free performance

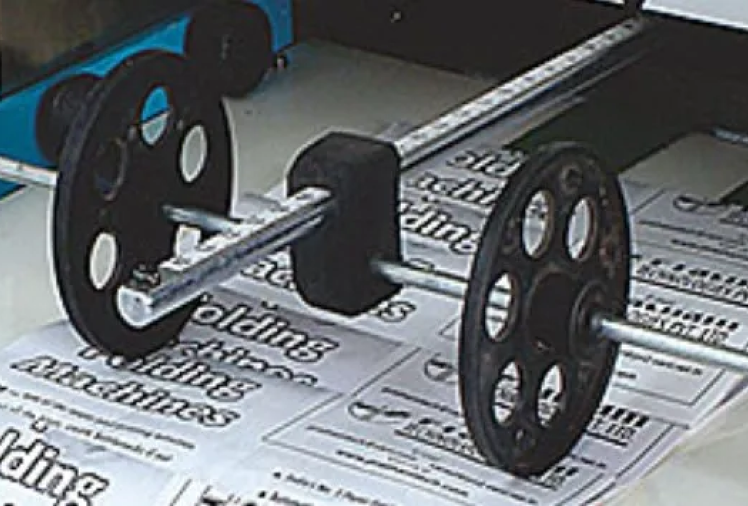

- Creasing or perforation on the leaflet during operation
- Minimum folding size of 18 mm
- Easy maintenance and accessible components
- Available with combination roller for enhanced performance
Possible Folding Patterns
Technical Specifications
VF 35/6
High-speed vacuum-fed folding solution for insert applications
| Folding configuration | 6 folding plates + 5 deflectors |
| Maximum paper size | 350 × 600 mm (13.78″ × 23.62″) |
| Minimum paper size | 70 × 110 mm (2.76″ × 4.33″) |
| Minimum paper fold | 18 mm (0.71″) |
| Roller speed | Up to 135 m/min |
| Paper weight | 47gsm to 130gsm |
| Paper type | Coated + non-coated |
| Power supply | 3 Phase, 415 VAC, 50 Hz |
BFC 29/6S
Compact buckle folding machine for short-format and precision folds
| Folding configuration | 6 folding plates + 5 deflectors |
| Maximum paper size | 290 x 350 mm (11.42″ x 13.78″) |
| Minimum paper size | 30 x 90 mm (1.18″ x 3.54″) |
Features
High‑precision folding powered by a bottom vacuum feeder and precision alignment table
Optimized for small‑format paper folding, delivering consistent and reliable performance
Rugged industrial design engineered for stability, durability, and demanding applications
High operational fluency ensuring smooth, uninterrupted production
Long service lifecycle with minimal maintenance requirements
Six folding pockets with five deflectors for enhanced folding flexibility and configuration options
Plain and vertical stacker with height‑adjustable functionality for flexible output handling
Integrated variable data code printing, inspection, and automatic ejection for superior quality control
