Insert Folding Machines
SuperFold Insert Folding Systems combine precision, reliability, and efficiency – delivering consistent fold quality and dependable performance in high-volume pharmaceutical leaflet and insert production operations.
Superfold 35 Series – Model Comparison
| Superfold Friction Feeder 35 | Superfold Vacuum Feeder 35 | Superfold Pile Feeder 35 | |
|---|---|---|---|
| Recommended For | Standard paper stocks, cost‑effective operations | Lightweight, coated, difficult-to-feed papers | High-volume, pre-stacked paper feeding |
| Max. Paper Width | 350 MM | 350 MM | 350 MM |
| Max. Paper Length | 600 MM | 600 MM | 750 MM* |
| Minimum Paper Fold | 70 × 110 MM | 70 × 110 MM | 125x150 MM* |
| Folding Configuration | 18 MM | 18 MM | 18 MM* |
| Paper Weight Range | Up to 6 folding plates + 5 deflectors | Up to 6 folding plates + 5 deflectors | Up to 6 folding plates + 5 deflectors* |
| Folding Patterns | Parallel, U‑fold, zigzag, cross‑fold | Parallel, U‑fold, zigzag, cross‑fold | Parallel, U‑fold, zigzag, cross‑fold* |
| Paper Weight Range | 47–130 gsm | 47–130 gsm | 47–130 gsm* |
| Max. Output Speed | Up to 19,000 sheets/hr (A4, single fold, 60 gsm) | High‑speed, stable on light stocks | High‑volume continuous feeding* |
| Roller Speed | 135 m/min | 135 m/min | 135 m/min* |
| Power Supply | 230 VAC, 50/60 Hz | 3 Phase, 415 VAC, 50 Hz | 3 Phase, 230/415 VAC, 50/60Hz |
| Key Advantage | Best balance of cost, speed, and flexibility | Most reliable feeding for coated & Non-Coated papers | Ideal for long runs with minimal operator intervention |

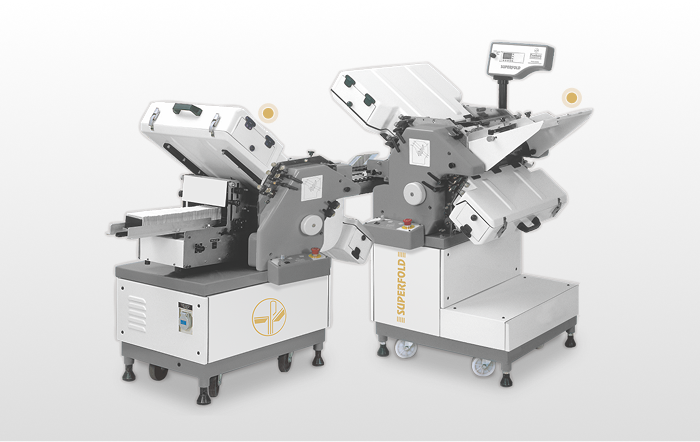

Superfold Friction Feeder 35

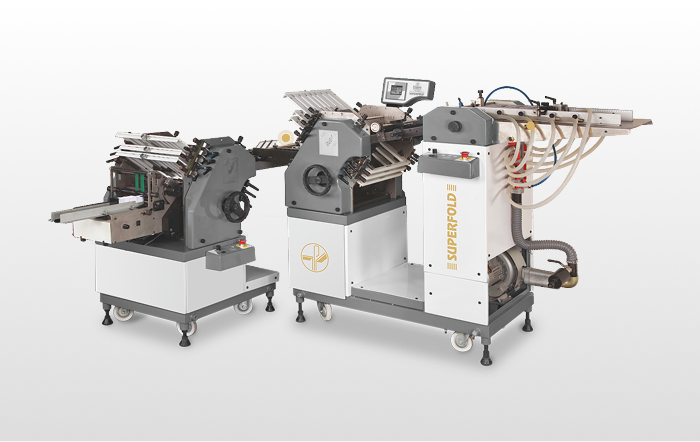

Superfold Vacuum Feeder 35

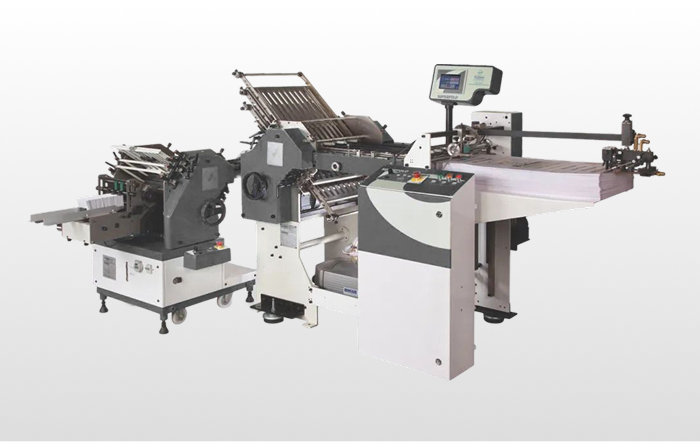

Superfold Pile Feeder 35
Recommended For
Standard Paper Stocks,
Cost‑Effective Operations
Lightweight, Coated,
Difficult-To-Feed Papers
High-Volume, Pre-Stacked
Paper Feeding
Max. Paper Width
350 MM
350 MM
350 MM
Max. Paper Length
600 MM
600 MM
750 MM*
Min. Paper Size
70 × 110 MM
70 × 110 MM
125×150 MM*
Minimum Paper Fold
18 MM
18 Mm
18 MM*
Folding Configuration
Up To 6 Folding Plates
+ 5 Deflectors
Up To 6 Folding Plates
+ 5 Deflectors
Up To 6 Folding Plates
+ 5 Deflectors*
Folding Patterns
Parallel, U‑fold, Zigzag,
Cross‑Fold
Parallel, U‑Fold, Zigzag,
Cross‑Fold
Parallel, U‑Fold, Zigzag,
Cross‑Fold*
Paper Weight Range
47–130 Gsm
47–130 Gsm
40–130 Gsm*
Max. Output Speed
Up to 19,000 Sheets/Hr
(A4, Single Fold, 60 Gsm)
High‑Speed,
Stable on Light Stocks
High‑Volume
Continuous Feeding*
Roller Speed
135 M/Min
135 M/Min
135 M/Min*
Power Supply
230 VAC, 50/60 Hz
3 Phase, 415 VAC, 50 Hz
3 Phase, 230/415 VAC, 50/60Hz
Key Advantage
Best Balance Of Cost,
Speed, And Flexibility
Most Reliable Feeding
For
Coated & Non-Coated Papers
Ideal For Long Runs With
Minimal Operator Intervention
Looking for a high-speed pharmaceutical insert folding solution?
Contact Pratham Technologies to find the right insert folding solution for your production needs.
