Friction Feeder: FF 35
Automatic Insert Folding Machine
Specially Designed for
Small Pharma Leaflet Application
Friction Feeder: FF 35
Automatic Insert Folding Machine
Specially Designed for
Small Pharma Leaflet Application
The Super Fold Friction Feeder FF-35 is a high-speed, efficient, and cost-effective A3/A4 paper folding machine designed for pharmaceutical insert folding. Built for precision and ease of use, it supports 2, 4, and 6 fold configurations with a working width of 350 mm, making it ideal for Maplitho paper and similar substrates.
Key Features:
- User-friendly job setting and operation
- Precise roller gap adjustment using a calliper for optimal folding accuracy
- Silent belt drive system ensures smooth and noise-free operation

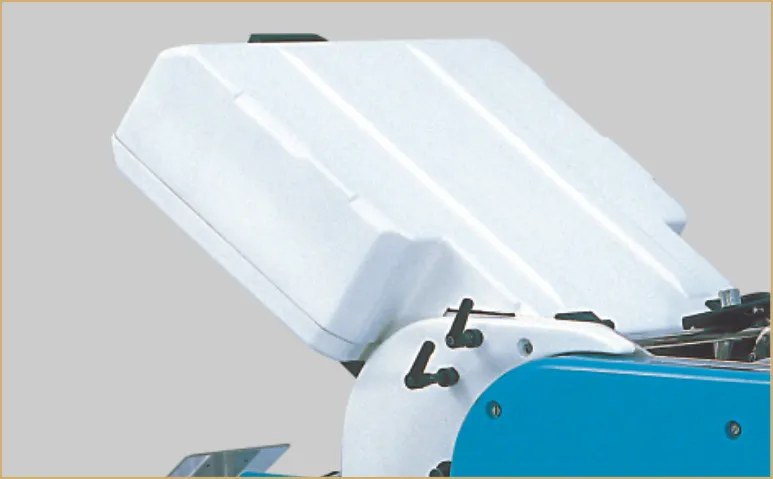

- Noise suppression hoods for enhanced sound control
- Creasing or perforation on folded leaflets possible during operation
- Minimum folding size of 18 mm

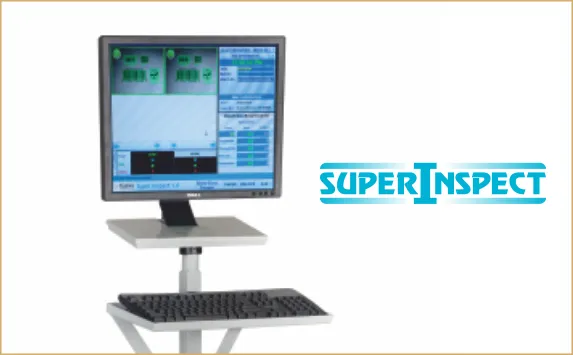

- Dual-side vision inspection to avoid mix-ups and blank sheets
- Mechanical ejection with non-stop operation for continuous productivity
- Easy maintenance with simplified access and minimal downtime
The FF-35 Friction Feeder is a versatile and reliable choice for pharmaceutical packaging lines, offering flexibility, precision, and high performance in every run.
Friction Feeder: FF 35

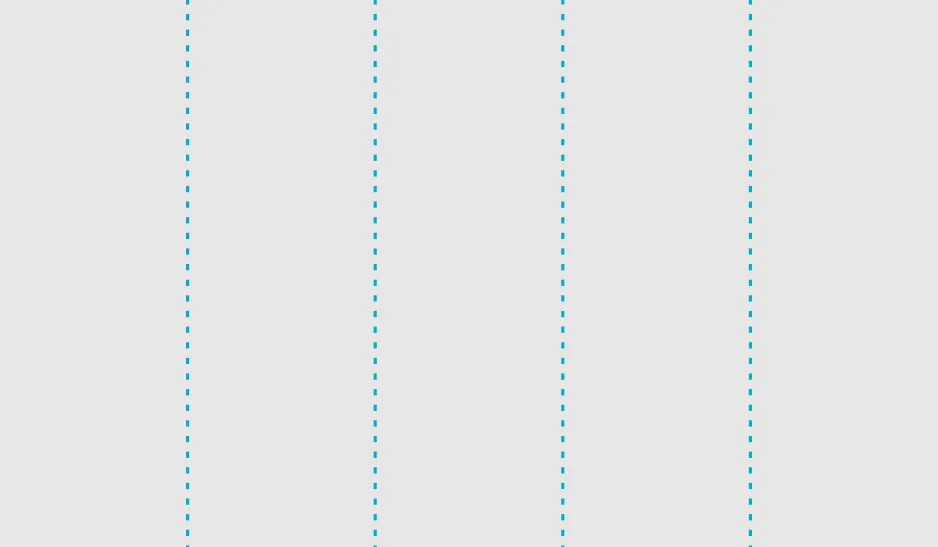

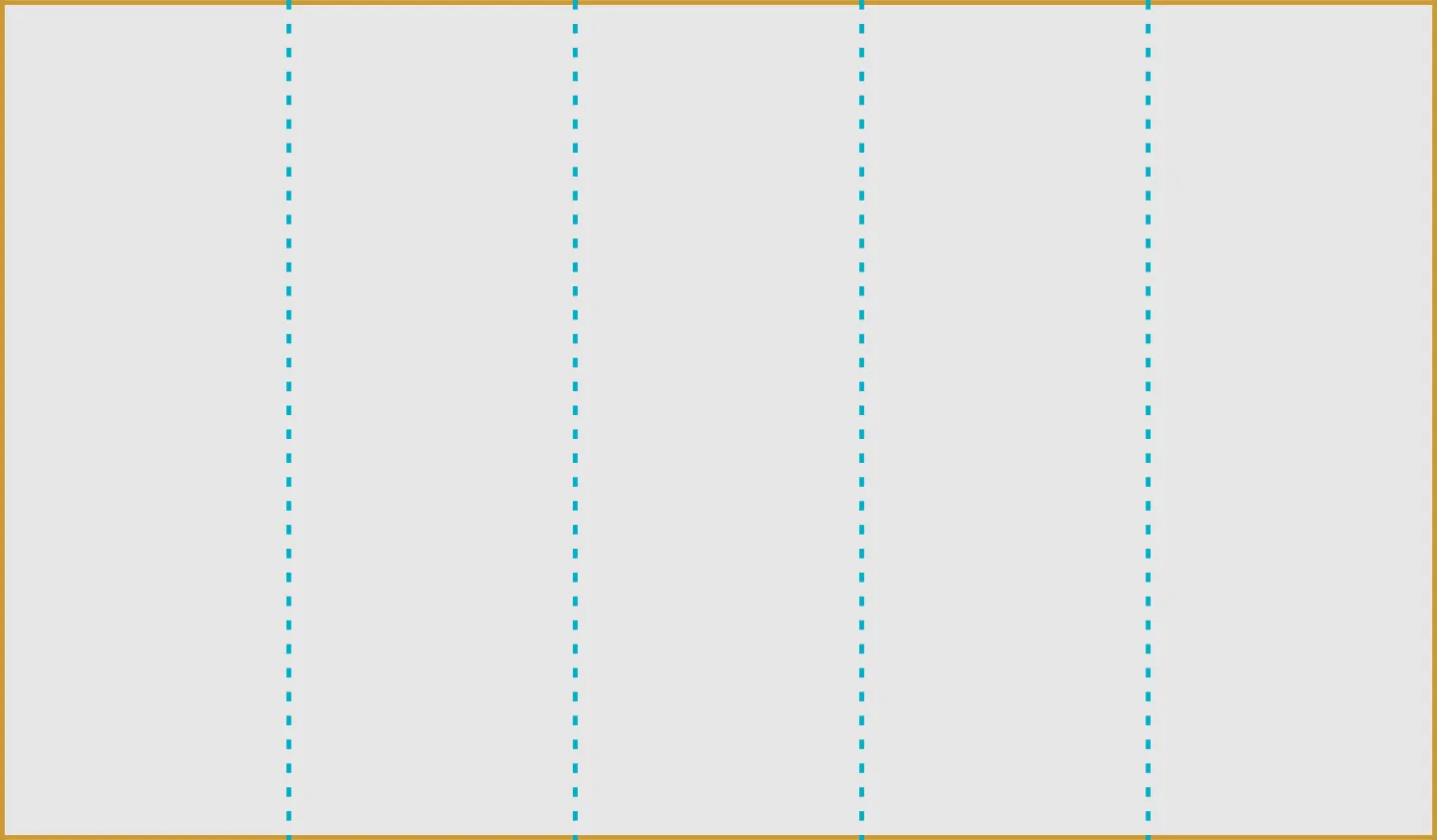

Possible Folding Patterns
Parallel Fold
Parallel U Fold
Parallel Zigzag Fold
Parallel Fold
Parallel U Fold
Parallel Zigzag Fold
Both Even and Uneven Folding Patterns are Possible
Friction Feeder: FF 35
Handles Various Paper Sizes
Maximum Paper Size
350 X 600 mm | 13 25/32“ X 23 5/8“
350 X 600 mm | 13 25/32“ X 23 5/8“
Maximum Paper Size
350 X 600 mm | 13 25/32“ X 23 5/8“
350 X 600 mm | 13 25/32“ X 23 5/8“
Minimum Paper Size
70 X 110 mm | 2 3/4“ X 4 21/64“
70 X 110 mm | 2 3/4“ X 4 21/64“
Minimum Paper Size
70 X 110 mm | 2 3/4“ X 4 21/64“
70 X 110 mm | 2 3/4“ X 4 21/64“
Friction Feeder: FF 35
Handles Various Paper thickness
Coated and Non-coated
31.76 lbs
to
60.81 lbs
Friction Feeder: FF 35
Features

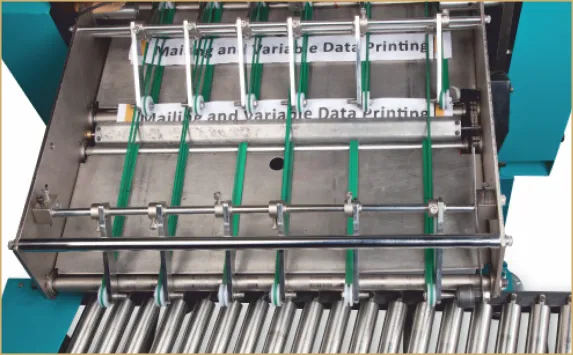

Transfer
unit
Plain stacker - Horizontal
delivery for folded sheets
Automatic friction feeder feeds
a single paper at a time
A rotary scoring (creasing) attachment
at the delivery end
Gap setting adjustment
by calipers
Silent
belt drive

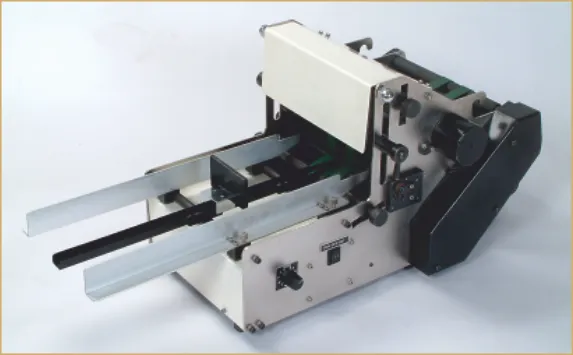

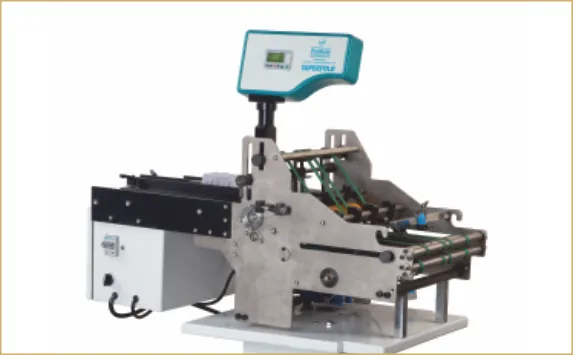

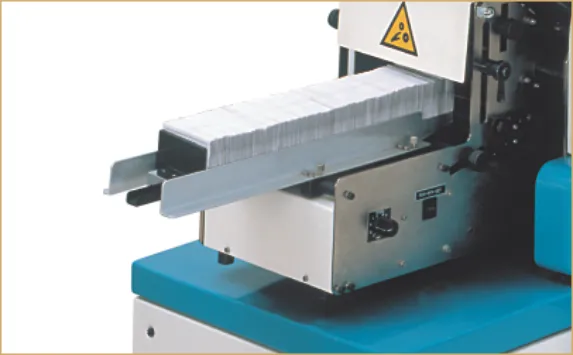

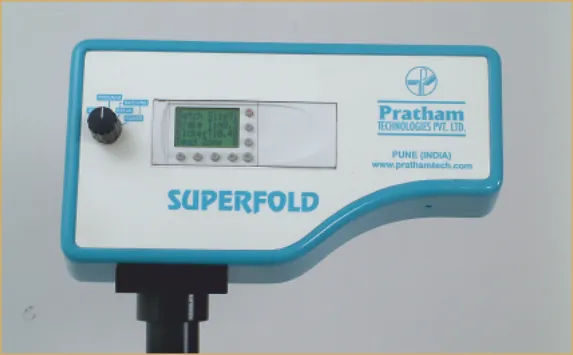

Add-On Accessories
Download Brochure
Exlpore Realated Products

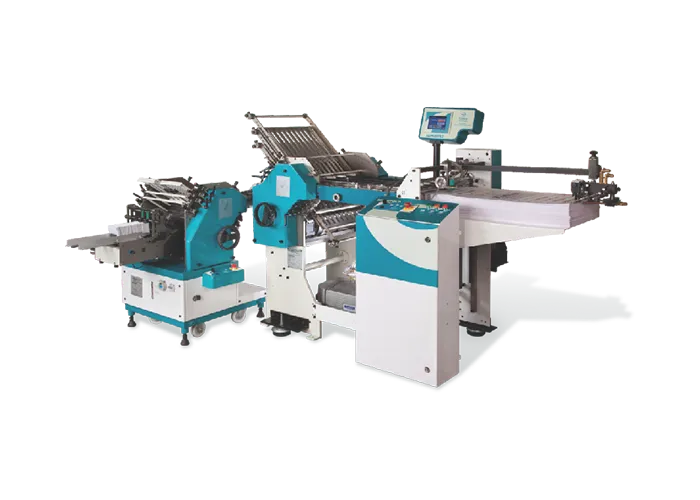

Pharmaceutical Insert Folding Machine
