Pratham Superfold

Super Double Tabber

Specially Designed for
Double tabbing purposes

Pratham Superfold

Super Double Tabber

Outsert accessory

Specially Designed for
Double tabbing purposes

SuperPrint 150

We manufacture the modular Outsert Folding Systems, introduced in 2018. We Have made 18 installations worldwide. Our machines covers everything from 10 to 24 folds with Round Pile Feeder and 10 to 18 folds with Flat Pile feeder option with serialization printing and inspection facility.
SUPERPRINT 150 is equipped with a jogger, high resolution printer unit, smart camera based inspection system and ejection unit at the end of conveyor to collect faulty samples in locked box. A smart reconciliation system ensures that all finished samples are collected in to the collection unit.

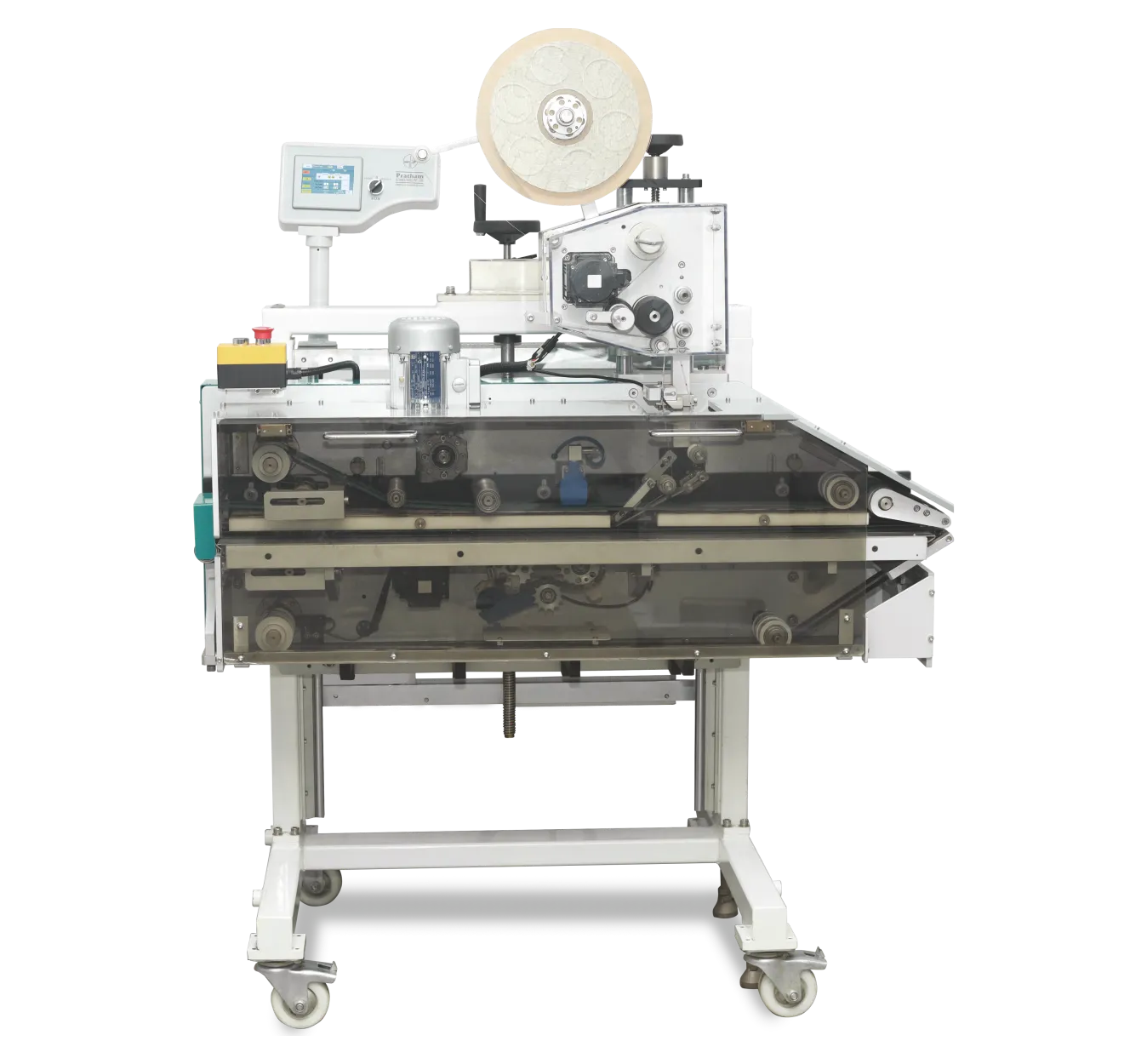

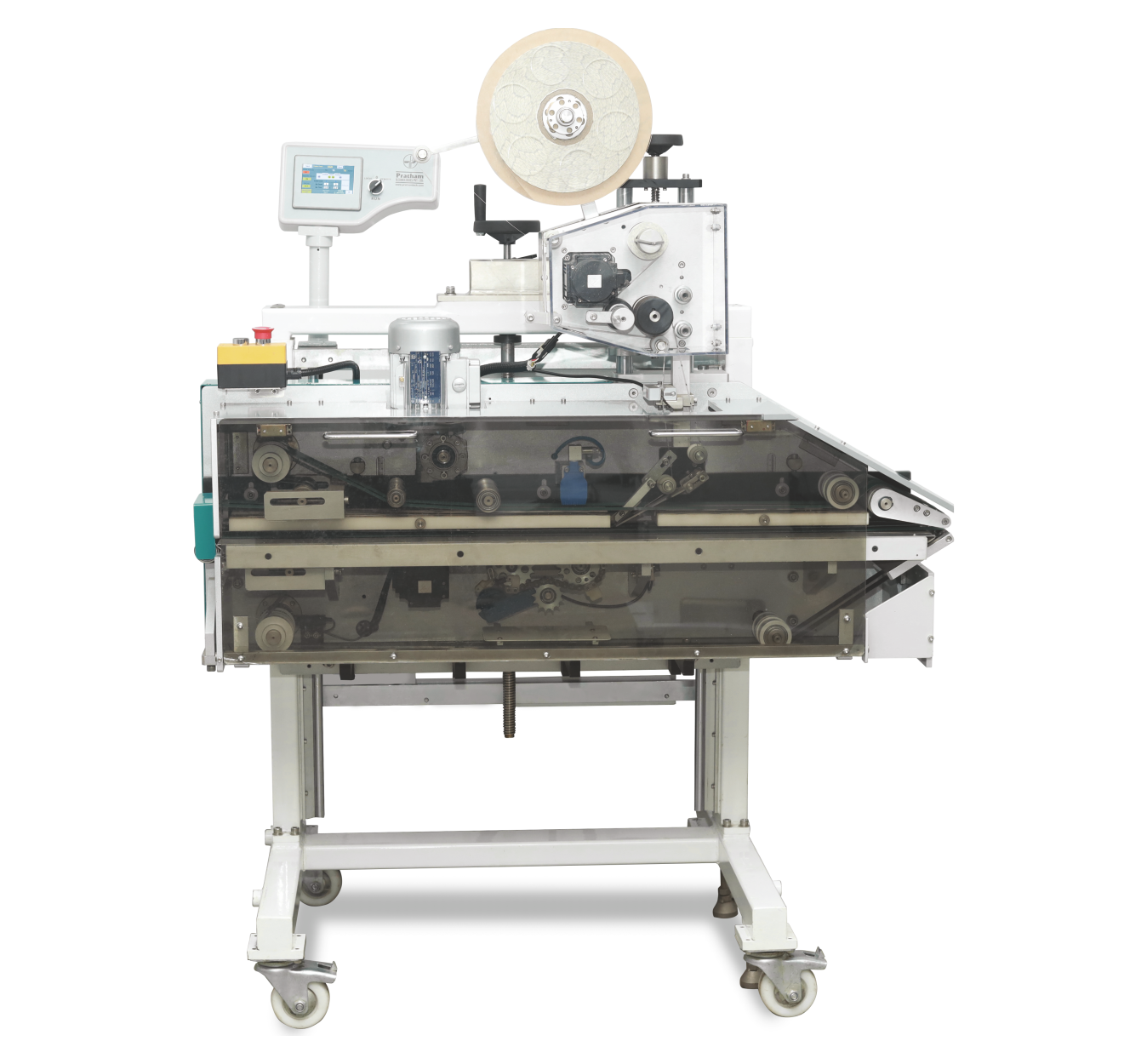

Super Double Tabber

Features

  • Can handle both rectangular and round tapes
  • Accommodates tape thickness ranging from 1 mm to 16 mm, ensuring compatibility with various tape types.
  • Can apply tape with a maximum width of 270 mm, while also allowing for smaller widths down to 38 mm for single-tab applications and 100 mm for double-tab applications.
  • Speeds of up to 10,000 sheets per hour or a conveyor speed of 30 meters per minute to increase productivity
  • The applicator features height adjustment capabilities, providing versatility for use with different types of folders, including right-angle folders and knives.
  • Maintains accuracy in label application by allowing for 10 mm side spacing, even for wider folded samples up to 200 mm.
  • Ensures precise and accurate label application

Super Double Tabber

Technical Specification

Taping Unit (Single Head)
Max Size 170 X 80 mm
Min. Size 38 X 38 mm
Thickness 3 to 16 mm
Speed 30 m/min (Depends on the Folding Format and paper quality) CE Marking
Pneumatic Pressure 4 to 6 Bar
Max. Label Size 15 x 40 mm (W x L)
Min. Label Size 12 x 30 mm
Release Liner width 15 to 18 mm
