Super Tray Packer
Advanced Robotic Tray Packing System
The Super Tray Packer Can Be Integrated With Any Outsert folder.

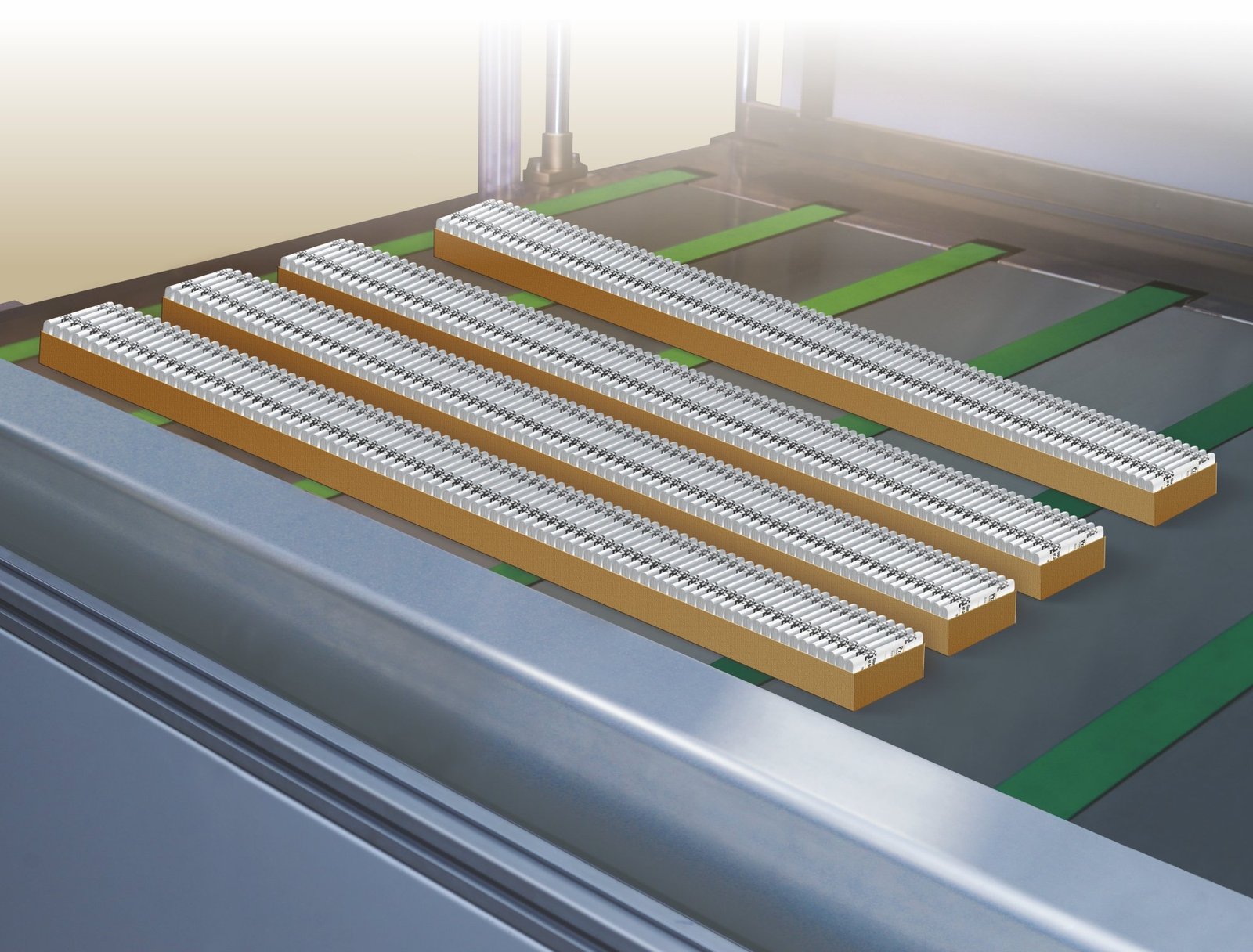

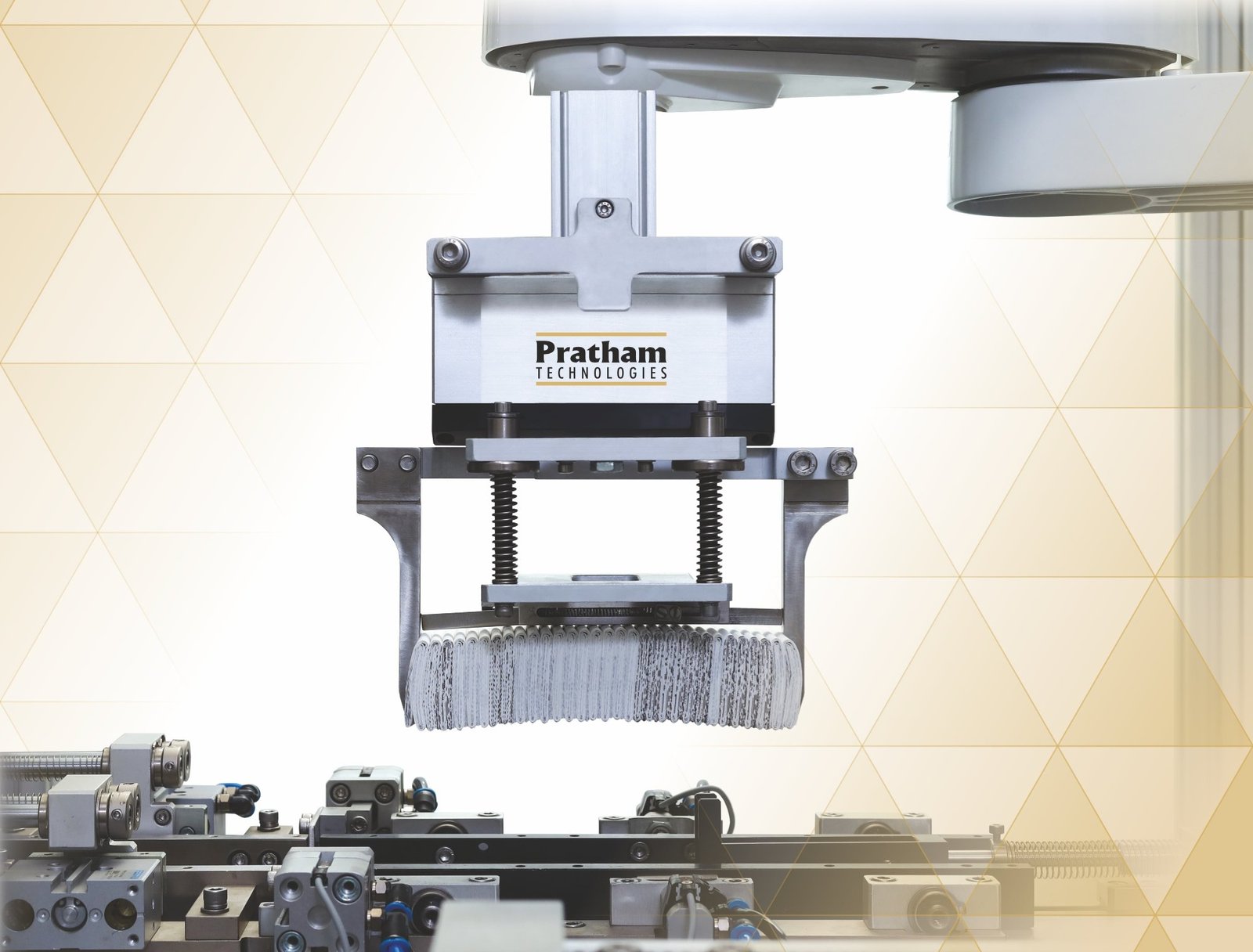

The Advanced Robotic Tray Packing System is a pick-and-place automation for outserts tray packing with tray loading, tray feeding, and tray indexing mechanisms.
Available Models: STP - 800 and STP - 1200
Super Tray Packer
Advanced Robotic Tray Packing System
The Advanced Robotic Tray Packing System is a pick-and-place automation for outserts tray packing with tray loading, tray feeding, and tray indexing mechanisms.
Super Tray Packer
Innovative Features

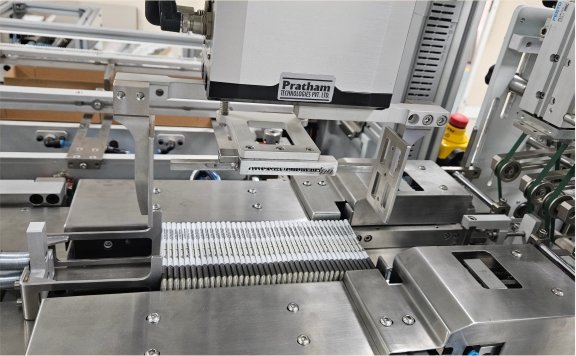

Continuous Batching of Folded Leaflets

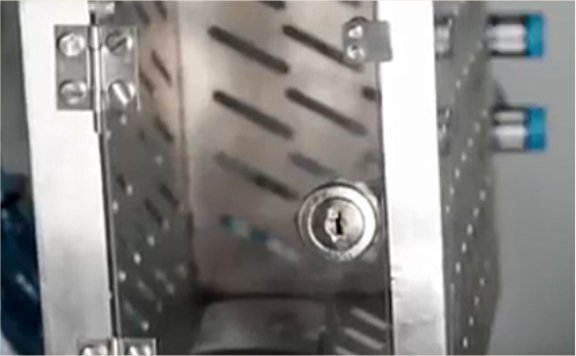

Separate Sampling Box for QC

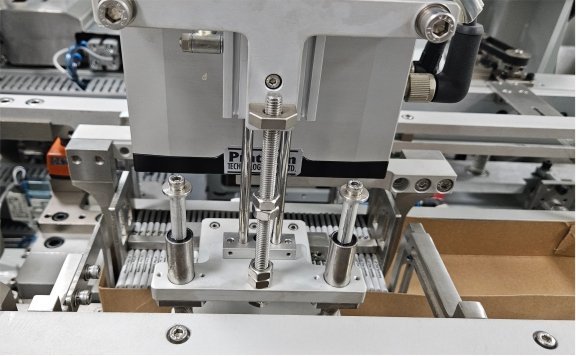

Tight Filling of Trays

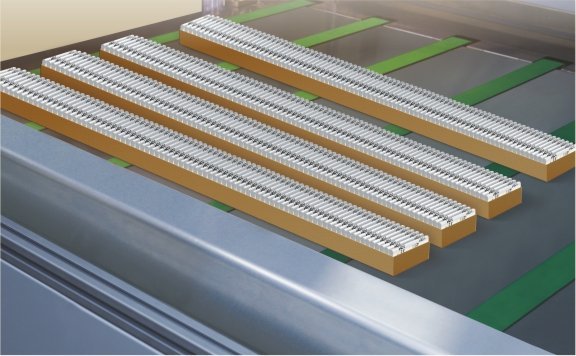

Suitable for Cardboard and Corrugated Trays

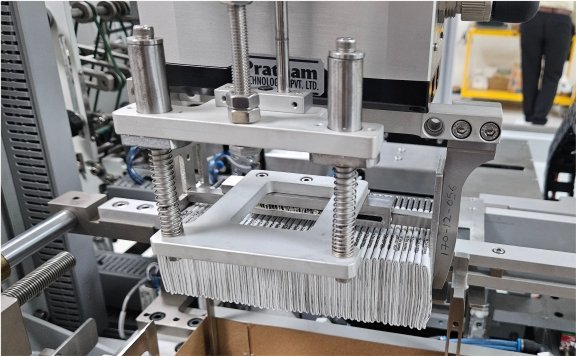

Non-stop Production Mechanism
Efficient Handling of Diverse Leaflets with Smart Robotics Intelligence
Super Tray Packer
Technical Specifications
| STP - 800 | |
|---|---|
| Product (Leaflet) Size Range | Minimum: 32 X 32 X 2.5 mm |
| Maximum: 150 X 70 X 16 mm | |
| Tray Size Range | Width: 32 mm – 150 mm |
| Height: 32 mm – 70 mm | |
| Length: 300 mm – 800 mm | |
| Production Rate Speed | 10,000 samples per hr. It may vary based on the size and criticality of the product. |
| Dimensional details | 3000 (L) x 2300 (W) x 2400 (H) mm |
| Weight: 2200 kg | |
| Electrical details | Supply voltage: 220 VAC, 50/60 Hz (L1, L2/N, PE) |
| Total power: 6 kW | |
| STP - 1200 | |
|---|---|
| Product (Leaflet) Size Range | Minimum: 32 X 32 X 2.5 mm |
| Maximum: 150 X 70 X 16 mm | |
| Tray Size Range | Width: 32 mm – 150 mm |
| Height: 32 mm – 70 mm | |
| Length: 300 mm – 1200 mm | |
| Production Rate Speed | 10,000 samples per hr. It may vary based on the size and criticality of the product. |
| Dimensional details | 3800 (L) x 2300 (W) x 2400 (H) mm |
| Weight: 2500 kg approx. | |
| Electrical details | Supply voltage: 220 VAC, 50/60 Hz (L1, L2/N, PE) |
| Total power: 6 kW | |
