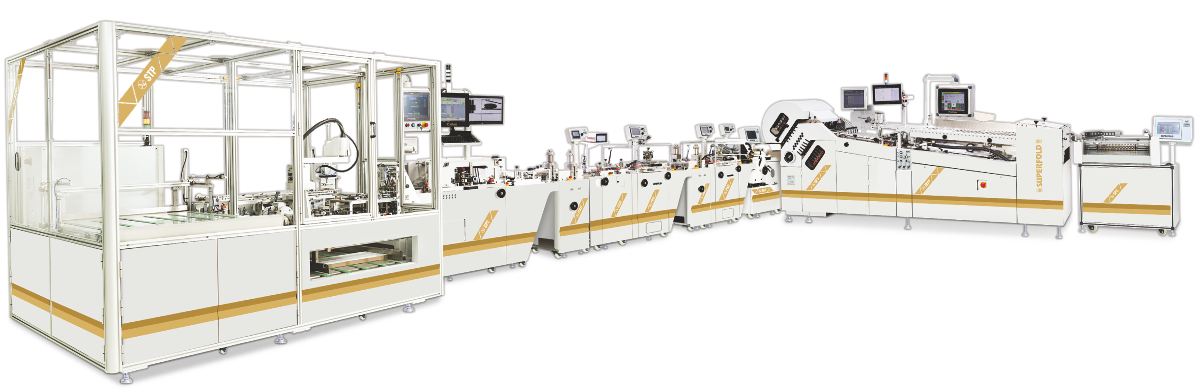

Pratham Superfold

Super Tray Packer: IRPF 53

Automatic Outsert Folding Machine

Specially Designed for

Specially Designed for
Thick Folding Application

Pratham Technologies’ Advanced Compact Outsert Folders offer space efficiency by saving 4 feet on the continuous feeder side. Their advanced features streamline job setup, boosting productivity and accuracy while minimizing maintenance requirements.

Pratham Superfold

Super Tray Packer: IRPF 53

Automatic Outsert Folding Machine

Specially Designed for

Pratham Technologies' Advanced Outsert Folders offer space efficiency by saving 4 feet on the continuous feeder side. Their advanced features streamline job setup, boosting productivity and accuracy while minimizing maintenance requirements.

Super Tray Packer: IRPF 53

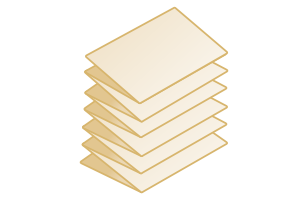

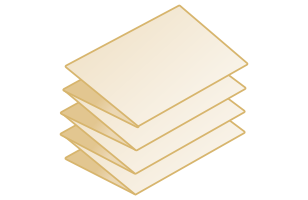

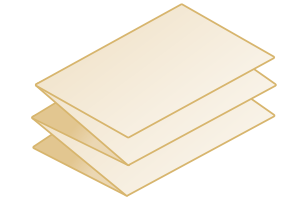

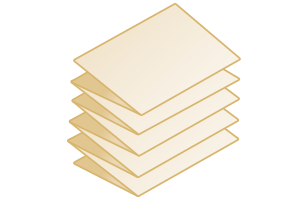

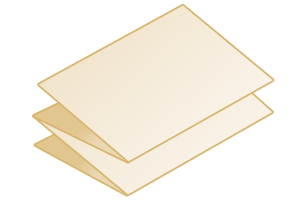

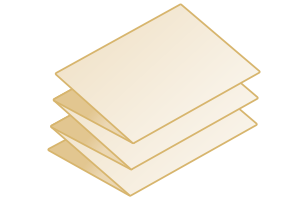

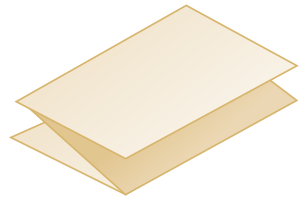

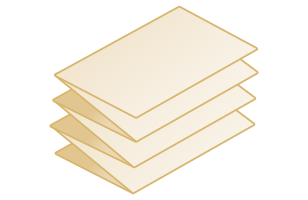

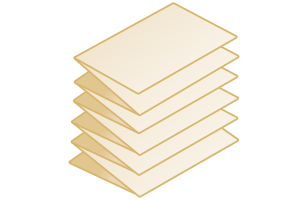

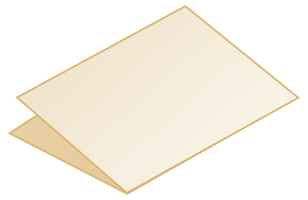

Both Even and Uneven Folding Patterns are Possible

Folding Patterns Parallel

Parallel Fold

Folding Patterns Parallel Zigzag

Parallel Zigzag Fold

Both Even and Uneven Folding Patterns are Possible

Super Tray Packer: IRPF 53

Handles Various Paper Sizes

Maximum Paper Size
530 X 1000 mm | 20 7/8 X 39 3/8
Maximum Paper Size
530 X 1000 mm
| 20 7/8 X 39 3/8
RPF_53 Paper Size Max-Min
Pratham Superfold RPF-53 Max Min Paper Sizes
Minimum Paper Size 140 X 210 mm | 5 1/2 X 8 1/4
Minimum Paper Size
140 X 210 mm
| 5 1/2 X 8 1/4

Super Tray Packer: IRPF 53

Handles Various Paper Thickness

Coated and Non-coated
Pratham Superfold PF-53 Paper GSM
28 gsm
to
90 gsm

Super Tray Packer: IRPF 53

Available Models

Minimum Folding Size
28 X 28 mm | 1 1/8 X 1 1/8
Minimum Folding Size
28 X 28 mm | 1 1/8 X 1 1/8
Pratham Superfold PF-53 Folding Sample

Super Tray Packer: IRPF 53

Salient Features

  • Compact inclined round Pile Feeder requires less space
  • Requires less dependence on operator skills
  • Efficient short grain paper run
  • Thicker folds can be folded in the right angle folding machine
  • Three-knife job can be done on two-knife setups
  • Manpower saving through STP-Super Tray Packer
  • Productive and efficient accuracy in glued sets
  • 15 mm thicker pharmaceutical folded samples are feasible
  • The feeding tray height is 937 mm long to hold the maximum number of samples
  • Smoothens process flow. If first samples are found incorrect then it will not apply glue to the next feeder sample. It minimizes wastage.
  • A camera-based inspection checks the codes and alphabets
  • Ejection confirmation facility to ensure that incorrect samples never enter into finished sets
  • 21 CFR compliance of inspection software
  • Excellent reconciliation of Outsert samples from first feeder to collection unit
Pratham Superfold Outsert Systems Silent Belt Dirve

Silent
Belt Drive

Pratham Superfold Outsert Systems Combination Rollers

Combination
Rollers

Pratham Superfold Outsert Systems SS Folding Pocket

SS Folding Pocket with
Position Indicator

Pratham Superfold Outsert Systems Paper Jam Detection

Jam Detection to avoid wear
and tear of parts

Pratham Superfold Outsert Systems Gap Setting

Gap Setting Adjustment
by Calipers

Pratham Superfold Outsert Systems Transfer Unit

Transfer Unit with Ejection
for Wrong Pharma Code.

Pratham Superfold Outsert Systems Double Sheet Detector

Electronic
Double Sheet Detector

Super Tray Packer: IRPF 53

New Advanced Features

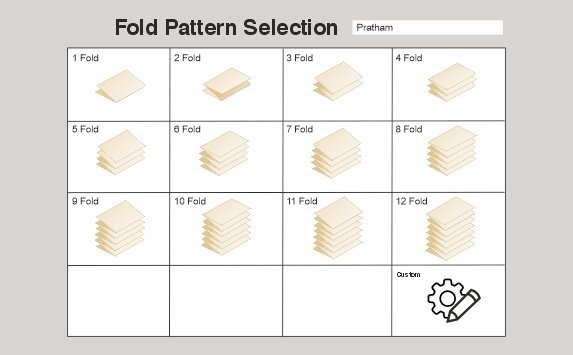

HMI

1. Facility to save multiple programs for different samples
2. Tracking system to avoid the JAM and damage in the machine

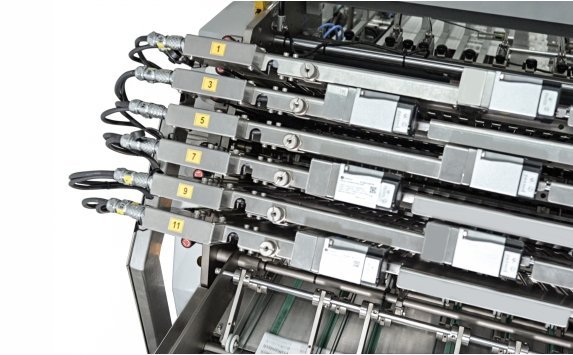

Automatic Folding Tray

1. Automatic folding tray with inbuilt deflector
2. Quick setup with lesser operator skills

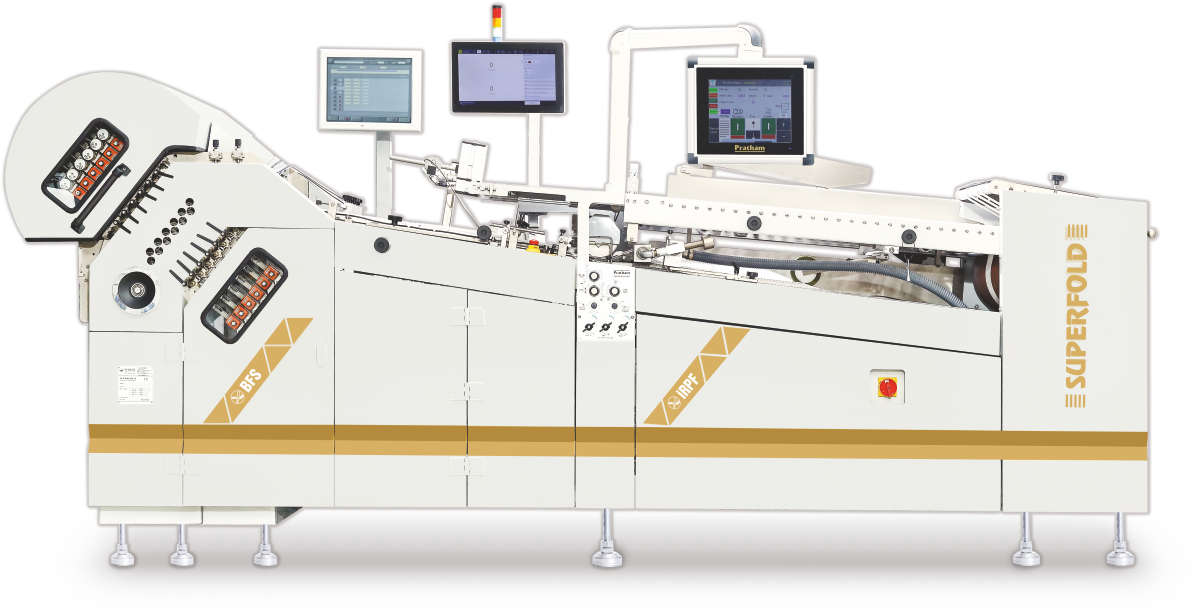

Compact Inclined RPF 53

1. Inclined Round Pile Feeder requires less space and provides a compact high-performance solution.
2. Quick setup changeover in the first station by adding paper strips in the caliper
3. Continuous feeding with automatic in-feed ejection for double sheets and inspection faults.
4. Side lay registration table for aligning the sheet before folding

Pratham Superfold Outsert Systems Silent Belt Dirve

Silent
Belt Drive

Pratham Superfold Outsert Systems Combination Rollers

Combination
Rollers

Pratham Superfold Outsert Systems SS Folding Pocket

SS Folding Pocket with
Position Indicator

Pratham Superfold Outsert Systems Paper Jam Detection

Jam Detection to avoid wear
and tear of parts

Pratham Superfold Outsert Systems Gap Setting

Gap Setting Adjustment
by Calipers

Pratham Superfold Outsert Systems Transfer Unit

Transfer Unit with Ejection
for Wrong Pharma Code.

Pratham Superfold Outsert Systems Double Sheet Detector

Electronic
Double Sheet Detector

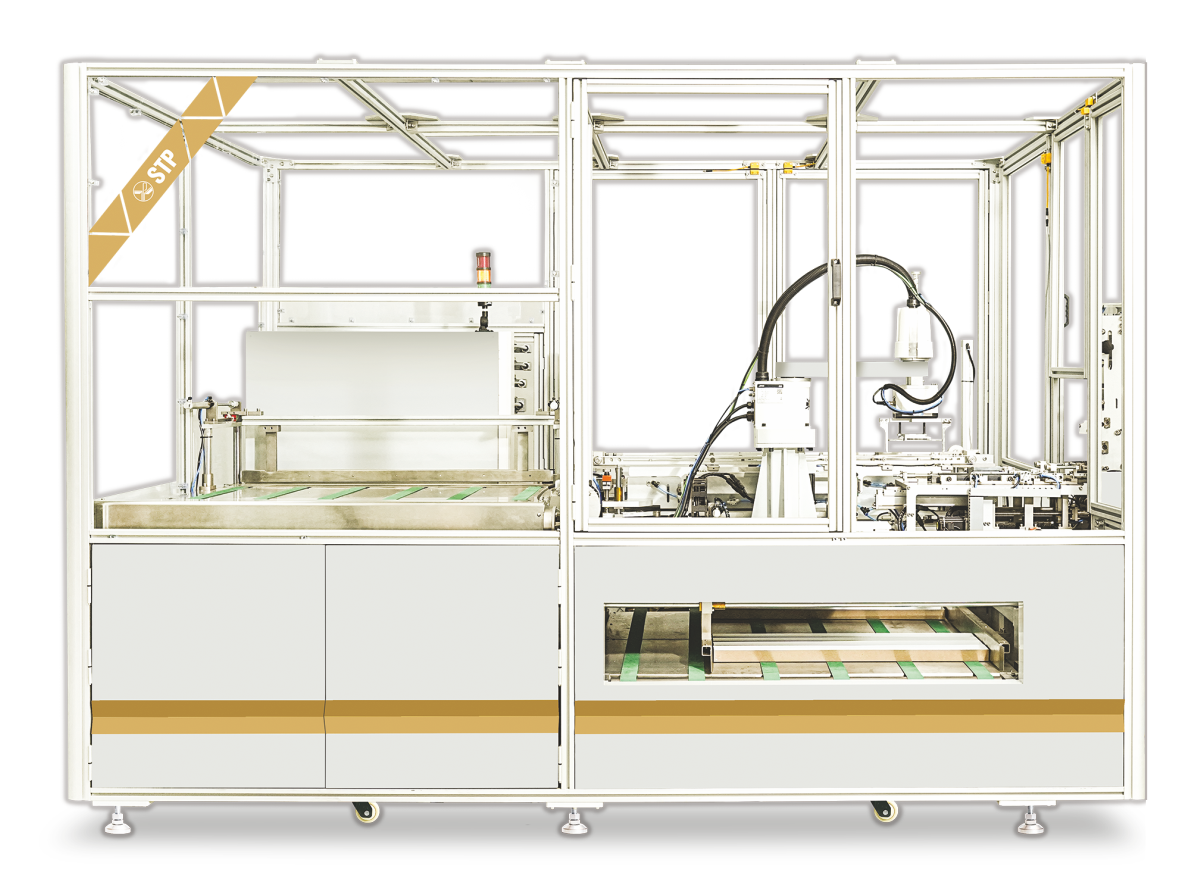

Addon Accessories

Download Brochure
